AMH
BACKGAUGE SYSTEM

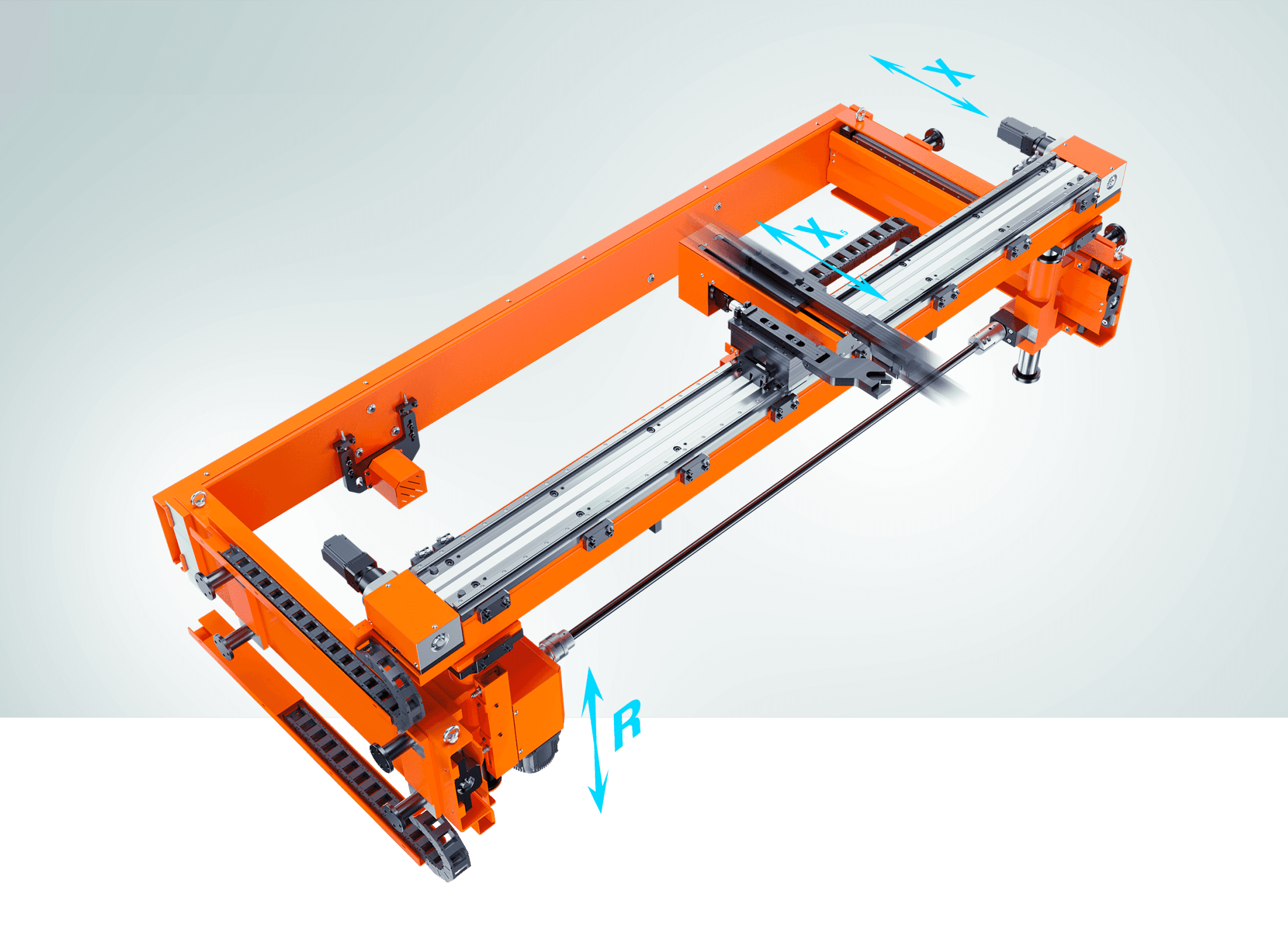

DELTA
x
5
BACKGAUGE SYSTEM
In the optional configuration with the backguage, offers outstanding performance in terms of speed and dynamics, and provides the advantage of precise positioning at all times.
X Axis stroke : 750mm
R Axis stroke : 200mm
DELTA X5 stroke : ±125mm

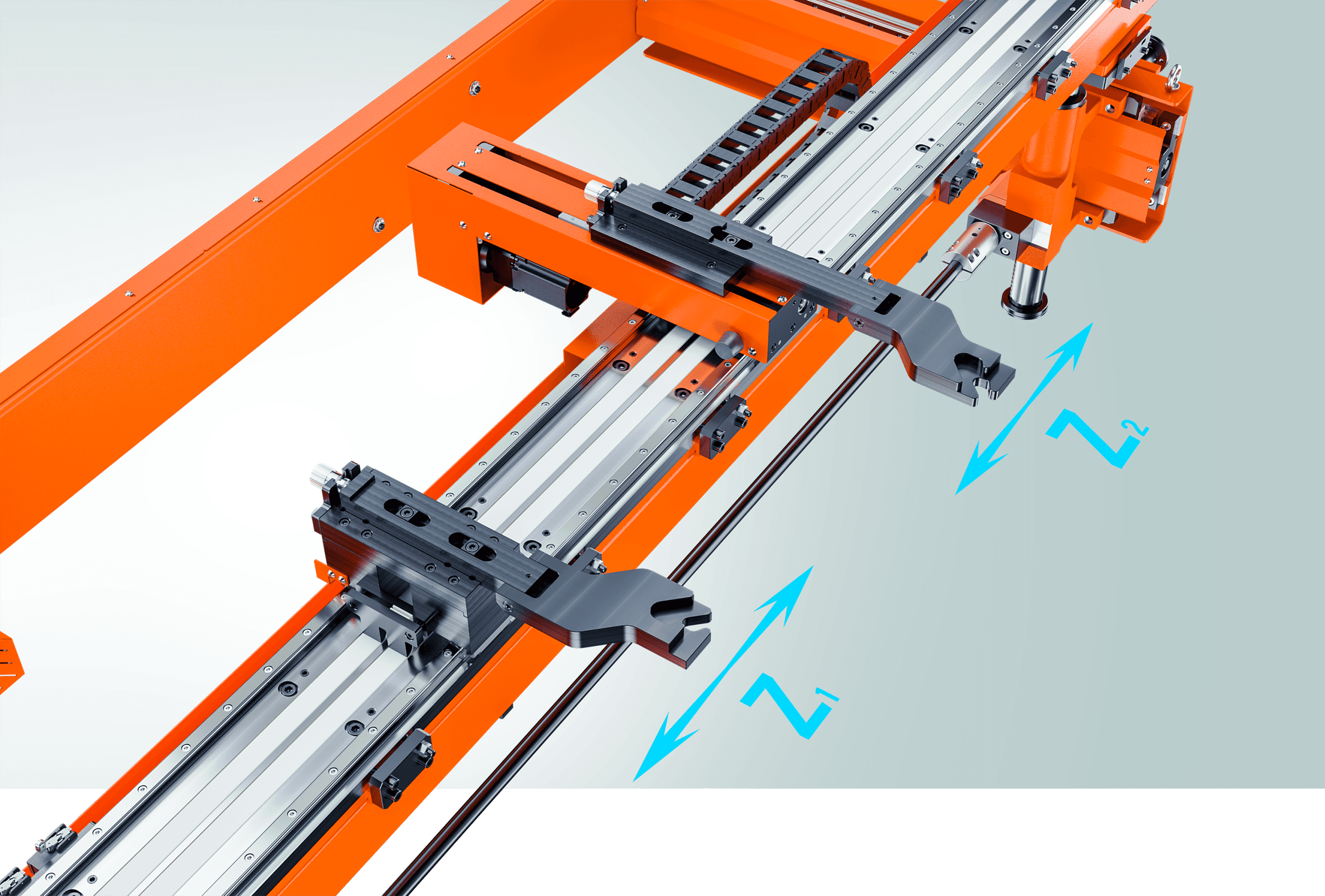

Z1 & Z2
BACKGAUGE SYSTEM
The Z1 & Z2 Backgauge System offers full control over the lateral (left and right) positioning of the backgauge fingers, with each axis (Z1 and Z2) moving independently. This functionality is essential for advanced bending applications, such as working with asymmetrical parts, multiple tool setups, or step bending sequences.
X Axis stroke : 750mm
R Axis stroke : 200mm

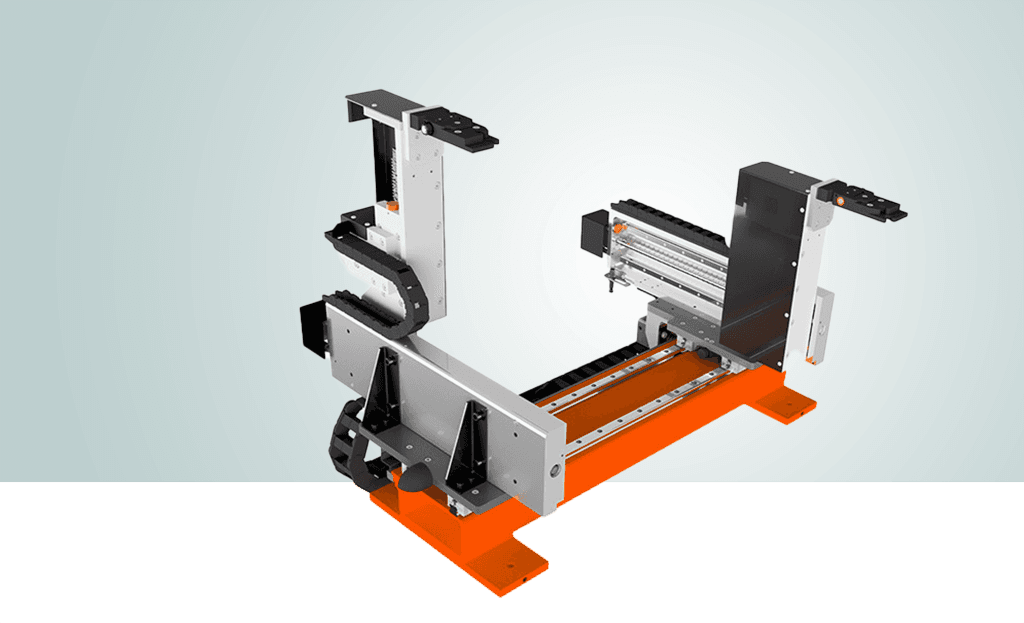

6 AXIS
BACKGAUGE SYSTEM
The X1-X2-R1-R2-Z1-Z2 axes enable automatic and precise positioning, facilitating the easy, fast, and repeatable bending of complex and large parts. Wide movement ranges and a powerful drive system enhance productivity and surface quality
